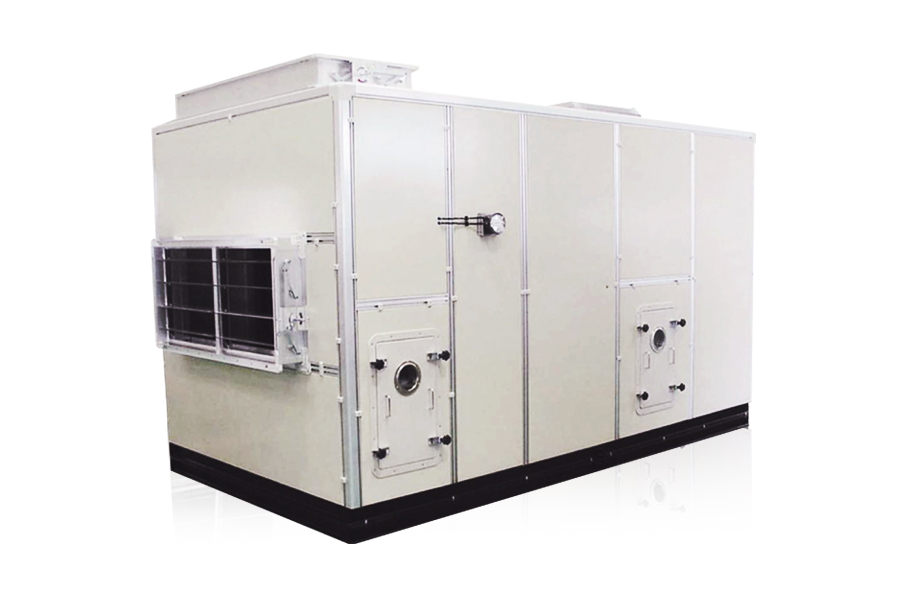

Air Handling Unit (AHU) Order Specification Form

Model Selection

• □ Horizontal Type

• □ Vertical Type

• □ Combination Type

• □ With Heat Exchanger

• □ With Motor Internal

• □ With Motor External

Fan Section

Fan Type:

• □ Airfoil

• □ Sirocco

• □ Plenum

• □ Turbo

Air Volume:
CMM

External Static Pressure:
mmAq

Internal Static Pressure:
mmAq

Fan Suction Type:

• □ Single Suction

• □ Double Suction

Fan Size & Quantity:
( ) ㎜ x ( ) EA

Motor Capacity:
( ) kW

Electrical Specification:
( )PH x ( )HZ x ( )V

Cooling Capacity:
( ) kcal/h

Cooling Source:

• □ Chilled Water

• □ DX (Direct Expansion)

• □ Others

Inlet Air Condition:
Dry Bulb Temp (DB): ( )°C / Wet Bulb Temp (WB): ( )°C

Chilled Water Inlet Temp:
( )°C

Chilled Water Outlet Temp:
( )°C

Refrigeration Capacity:
RT x Cycle

Heating Section

Heating Capacity:
( ) kcal/h

Heating Source:

• □ Hot Water

• □ Steam

• □ Electric

• □ Others

Inlet Air Condition:
Dry Bulb Temp (DB): ( )°C / Wet Bulb Temp (WB): ( )°C

Hot Water Inlet Temp:
( )°C

Hot Water Outlet Temp:
( )°C

Steam Pressure:
( ) kg/cm²G

Electric Heating Load:
( ) kW

Coil Specifications

Fin Material:

• □ AL

• □ AL Coated

• □ CU (Copper)

• □ Stainless

Tube Material:

• □ AL

• □ CU

Header Material:

• □ SGP

• □ CU

Humidification

Steam Consumption:
( ) kg/h

Humidification Method:

• □ Steam Injection (Nozzle Type)

• □ Spray

• □ Electric Electrode

• □ Electric Heater

• □ Others

Steam Conditions:
Steam Pressure: ( ) kg/cm²G

Electric Humidifier Capacity / Power Consumption:
( ) kW

Filter

• □ Pre

• □ Medium

• □ Hepa

• □ Roll

• □ Electronic Filter

• □ Air Washer

Drain Direction

• □ Left Drain

• □ Right Drain (Standard for supply air units)
